Lectric XP TRIKE FOLDING ELECTRIC BIKE
NATIONAL EBIKE
Home of Effortless Adventures®
See More – Go Far – Have Fun!
SHIPPED -or- BOXED

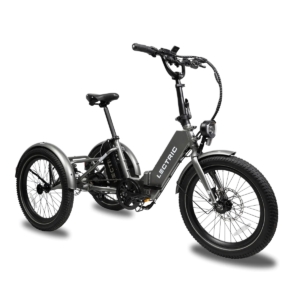

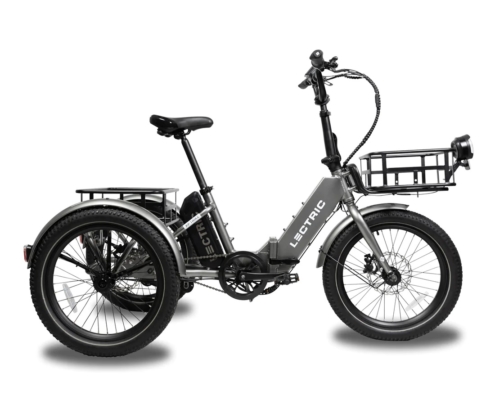

XP Trike (Folding)
$1599$1499- Lectric Promotions Are Included!
SHOP SETUP
Setup + Alarm: Add $99
- Uncrate / Inspect
- Professional Setup
- Tune/Lubrication
- Installed Alarm w/ Remote
- Lectric Promotions Are Included!
SPECIFICATIONS
Weight
With the battery removed, the XP™ Trike is just 64 lbs, making this is one of the most lightweight electric tricycles on the market.
Battery
A removable 48V, 14Ah lithium-ion battery makes for a clean design while powering your ride for up to 50+ miles on a single charge.*
Charging
An external charging port provides riders with the option to charge the eBike without removing the battery. Meanwhile, interchangeable spare batteries can be removed and installed in seconds, doubling your range.
Tires
Slim 20 x 2.6 inch tires allow you to turn on a dime. The sidewall features a stylish reflective strip, customized by Lectric.
Motor
A 500W nominal, 1092W peak planetary geared brushless motor achieves the perfect balance between torque and speed to each rear wheel.
Pedal Assist
Cadence sensor equipped with five levels of pedal assist to enhance the riding experience for all skill levels.
Throttle
Twist throttle delivers pure power on demand.
Drivetrain
36 x 16 tooth single speed drivetrain makes riding efficient and seamless.
Brakes
180mm brake rotors with a hydraulic system for the front wheel and rear axle. Parking brakes help you keep your trike secure while not in use.
LCD Display
A backlit, heads-up LCD display provides trip and battery intelligence on the go. IP-65 rated electrical components ensure greater water and dust resistance.
Safety Lights
Integrated front and rear lights allow you to be seen at night and provide you with greater safety. As an added bonus, both rear fenders feature an integrated rear light.
Frame
Fully foldable 6061 aluminum makes the eBike lightweight and sturdy.
Front Fork
Rigid Steel Fork with a threadless headset.
Controller
20 Amp motor controller with built in heat sensors to eliminate burn-out.
Color
Graphite
GEOMETRY
Bike Unfolded
63.5″L x 30.5″W x 43″H
Stand Over Height
13.8″
Handlebar Height
41.5″-44.75″ (adjustable)
Bike Folded
38.5″L x 30.5″W x 30″H
Payload Capacity
Max: 415 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Basket Weight 35 lbs, Max Rear Basket Weight 75 lbs.
Seat to Ground
Max: 37” / Min: 30”
Handlebar Width
25″
Rider Height
4’10” – 6’4”
Rear Rack Length
8.9” fits Lectric Large Basket
Wheelbase
43.75”
Rider Inseam
22”-35” (in relaxed pedaling position)
Effective Top Tube
21.85”
Handlebar Reach
18.5” – 20”
